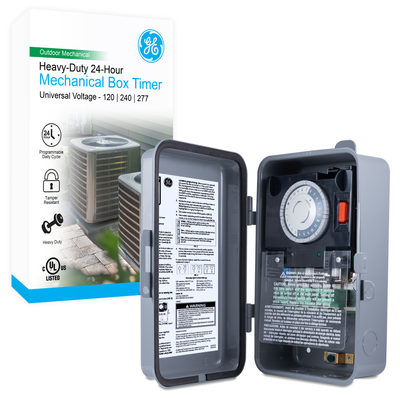

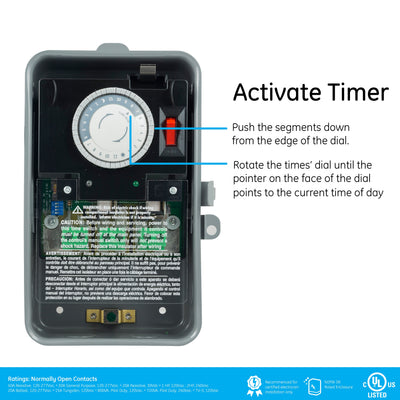

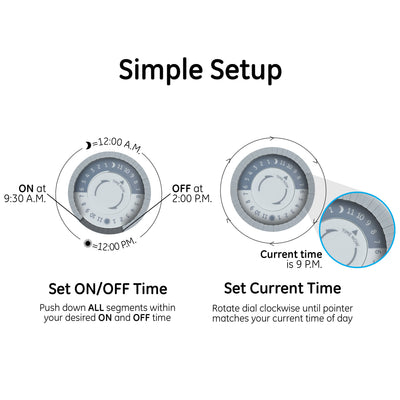

Schedule your day with the GE Outdoor 24-Hour Mechanical Box Timer Switch. The heavy-duty box timer is perfect for fans, pumps, pool heaters, AC units, heating and ventilation systems, and more. For additional durability and security for outdoor use, the weatherproof metal case is lockable, tamper resistant and NEMA 3-R Rated. Manual 30-minute interval pushpins allow several ON/OFF settings per day to control single-pole single-throw and double-pole single-throw switches. To activate, simply push the periods of time down from the edge of the dial and rotate the times’ dial to current time of day for a 24-Hour cycle. Convenient and secure block terminals support fast, easy wiring, and selectable voltage – 120V, 240V or 277V – provides power to accommodate a variety of equipment. Manage your home’s large appliances with the GE Outdoor 24-Hour Mechanical Time Switch.

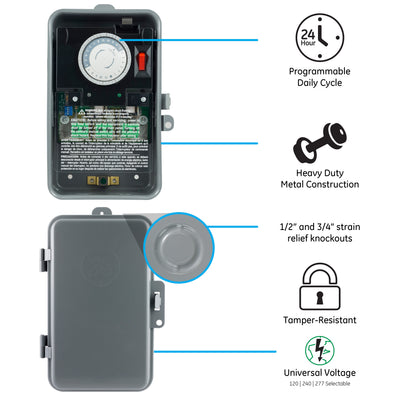

Programmable Daily Cycle
Schedule ON/OFF times with easy-set trippers to operate either single-pole single-throw and double-pole single-throw switches.
Heavy-Duty Metal Construction
Heavy-duty, rain-tight, rust-proof metal construction designed to withstand the elements.
30 Minute Intervals

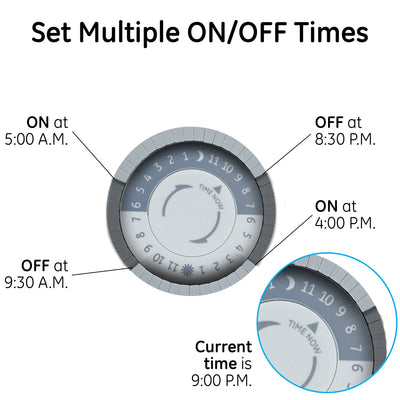

Manual 30-minute interval push pins allow several personalized ON/OFF settings per day.
Tamper Resistant
The metal box timer is lockable to resist tampering and convenient screw terminals hold wires securely.
This NEMA 3-Rated box timer is perfect for pool pumps, water heaters, outdoor lights, fans, AC units and other heavy-duty appliances.
For indoor and outdoor use.
Electrical Ratings:
- 40A resistive, 120-277 VAC
- 30A general purpose, 120-277 VAC
- 20A resistive, 30 VDC
- 1 HP, 120 VAC, 2 HP, 240 VAC
- 20A ballast, 120-277 VAC
- 15A tungsten, 120 VAC
- 800 VA, pilot duty, 120 VAC
- 720 VA, 240 VAC, pilot duty
Pre-installation

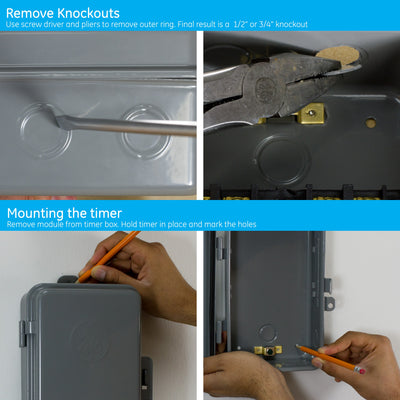

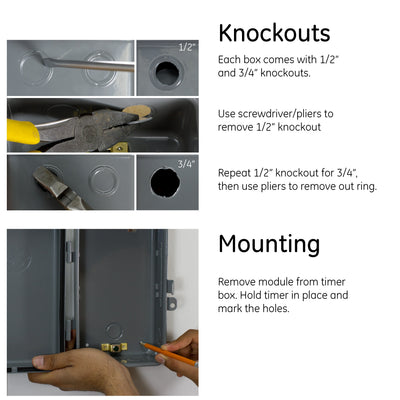

Before installation, follow the instructions to remove knockouts to route wiring to connection terminals. Knockouts may be made 1/2 in. or 3/4 in.
Place small blade screwdriver into inner ring of knockout circle. Tap down lightly with the screwdriver in order to punch the 1/2 in. knockout loose.
For 3/4 in. knockout, create 1/2 in. first, then grip outer ring of knockout circle with pliers. Gently twist and pull to remove outer ring and form 3/4 in. knockout.
